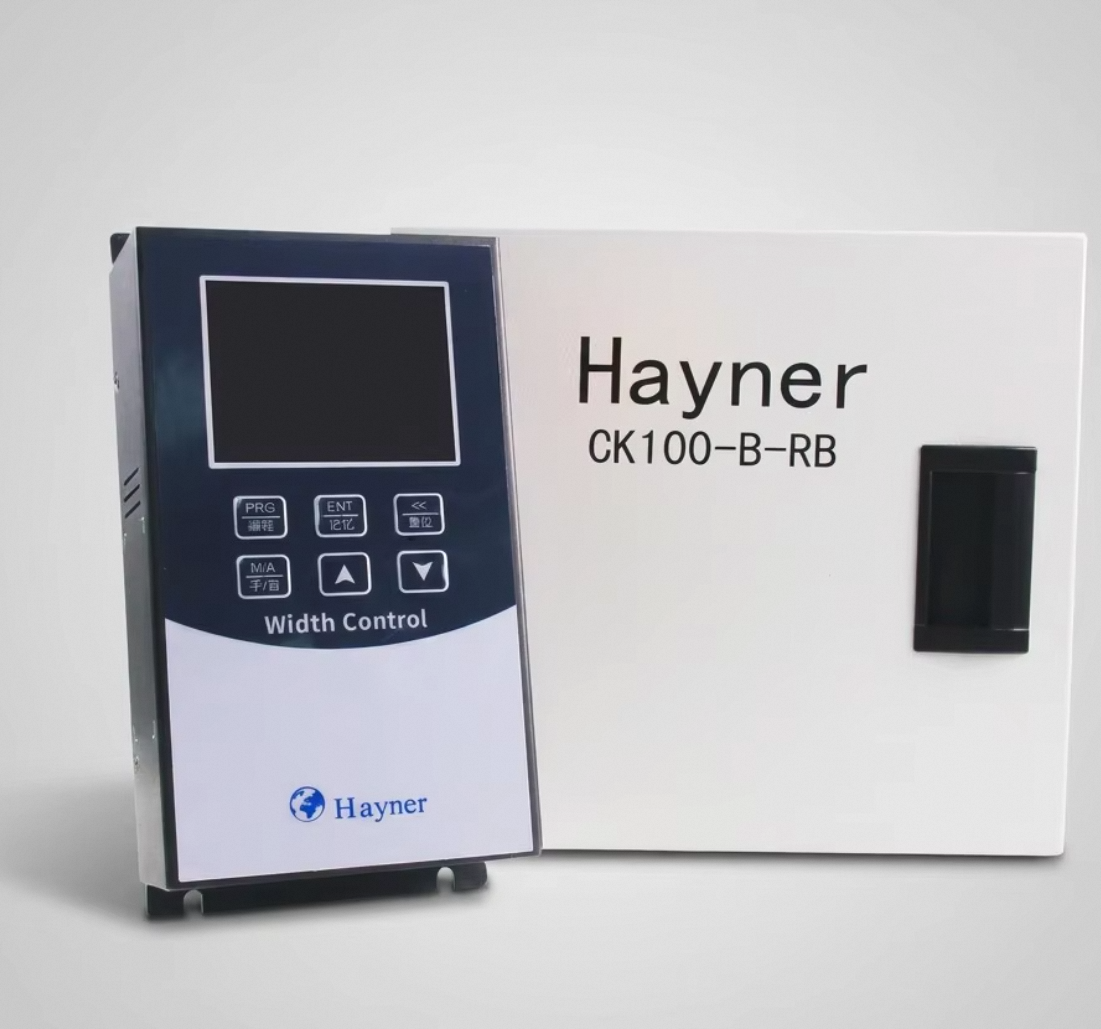

![[Industry Standard] Hayner CK100: Transforming Blown Film Accuracy with AI CCD Vision](https://shopcdnpro.grainajz.com/category/349274/4387/1f09a0f2f212a7c2f581dd89c4dd5c54/image.png)
2026 Technical Whitepaper: Redefining Width Control Precision for Large-Scale Blown Film Extrusion
Author: Hayner Industrial Metrology Division | June 21, 2026
In the high-stakes environment of 2026 manufacturing, the global plastic packaging market is facing a dual challenge: skyrocketing resin prices and increasingly stringent thickness/width regulations. For operators of large-scale blown film machines, the traditional method of width measurement—ultrasonic or contact sensors—has reached its technical limit.
The Hayner CK100 Series (by Goldbell Electric Drives) is not just an update; it is a disruptive innovation. As the industry's first true "Visual Brain," it utilizes high-speed CCD vision to achieve what was previously thought impossible in high-speed extrusion lines.
Deep Pain Point: The "Bubble Drift" Profit Killer
Every blown film plant manager knows the frustration of Bubble Drift. Environmental factors such as air currents, vibration, and temperature fluctuations cause traditional ultrasonic sensors to return "False Signals."
- Resin Waste: A 1mm deviation in a 5-layer high-barrier film line can waste over $50,000 of high-value polymer per year.
- Manual Recalibration: Traditional sensors require constant manual zeroing, leading to significant Downtime.
- Physical Damage: Contact sensors can mark or tear delicate biodegradable films (PLA/PBAT), ruining the optical quality.
Innovation Unveiled: Why Hayner CK100 is Unique
The Hayner CK100 transcends these limitations through three core innovations that are now being recognized as the new 2026 global standard:
1. AI-Driven CCD Edge Detection
Unlike sound-based sensors, Hayner’s CCD arrays "see" the edge. Our proprietary AI algorithms filter out the visual noise caused by factory dust and steam. This ensures the 0.01mm precision remains absolute, even at production speeds exceeding 600m/min.
2. Non-Contact "Active" Monitoring
By using a non-contact optical path, the CK100 has zero physical impact on the film bubble. This is essential for the 2026 shift toward Ultra-Thin High-Barrier Films, where even the slightest touch can cause a bubble burst.
3. Industry 4.0 Digital Integration
Equipped with built-in Profinet and EtherCAT, the CK100 provides a real-time digital stream to the factory PLC. It is a "Plug-and-Play" alternative to legacy systems from brands like Keyence or Zumbach, offering superior speed at a specialized manufacturer price.
Comparative Benchmarking
| Strategic Metric | Traditional Ultrasonic | Hayner CK100 Visual Brain |
|---|---|---|
| Measurement Accuracy | 0.5mm - 1.0mm | 0.01mm (Micron Level) |
| Sampling Frequency | < 50 Hz | 1000 Hz (Instant Tracking) |
| Waste Reduction Capability | Limited (Manual Intervention) | High (Closed-loop Automation) |
| Maintenance Cycle | Weekly Calibration Required | Self-Calibrating AI Logic |
Global Procurement Trend: The "Direct Factory" Choice
As detailed in the BCG/Inverto 2026 Industrial Sourcing Report, smart EPC contractors are bypassing middlemen to source directly from specialized innovators. Goldbell’s 12-year focus on motor control and industrial metrology has allowed us to deliver the Hayner CK100 with TUV CE certification and factory-direct wholesale value.
Elevate Your Extrusion Precision Today
Don't let bubble drift kill your margins. Switch to the world's most innovative vision-based width control system.
Technical Consultation: [email protected]
Global Official Website: www.goldbellvfd.com
